Pro Audio Module System ToolMod
Stereo Mastering Modules

An overview on the ToolMod pro audio modules for stereo mastering applications.

more Information on
Stereo Mastering:
  -  Stereo Mastering
  -  Stereo Mastering Sets

and on M/S Stereo Mastering:
  -  M/S Mastering Compressor
  -  M/S Mastering Equalizer
  -  M/S Direction Mixer / elliptic EQ
  -  M/S Processing Sets

TM132 - M/S Stereo Mastering Compressor

M/S mastering compressor with special features for real M/S compression and a rich feature set. The M/S stereo mastering compressor offers high loudness gain, 6 Crest factor settings, envelope circuit for problem-free low frequency compression, integrated parallel compression, Hue filter to alter the compression in the mid / high range, and a Color circuit to add harmonics. The integrated L/R-M/S matrix stages make it possible to use the module in M/S mode with standard L/R stereo signals.
Price excl. of VAT and Shipping TM132 - € 1650.00 / TM132b - € 1450.00
Inquiry and Order Form • Currency Converter

TM222 - Stereo Mastering Compressor with Crest, Fill, Envelope and LT-Int

The Stereo Mastering Compressor has been optimized to achieve massive loudness gain without negative side effects. Using well adapted settings of all parameters can result in 10 or even 15 dB loudness gain with almost every kind of audio signal. Huge control ranges for all parameters and important special functions like Envelope, Fill and LT-Int allow entirely different behavior of the compressor and best possible adaptation to the mix.
Price excl. of VAT and Shipping € 830.00
Inquiry and Order Form • Currency Converter

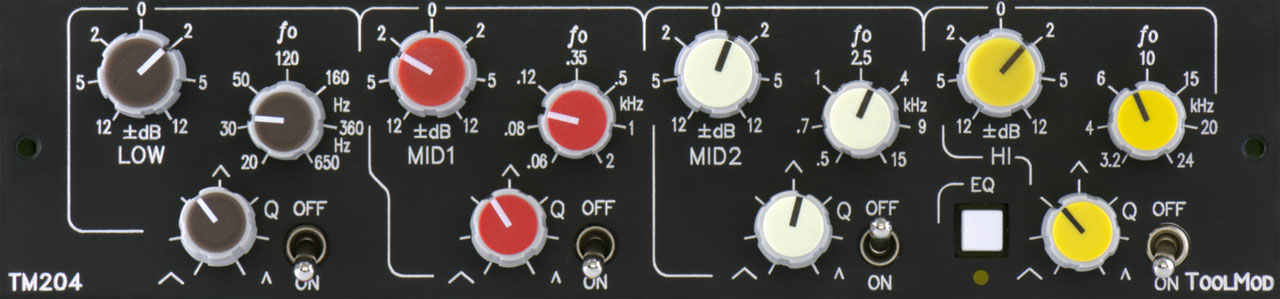

TM204 - fully parametric 4-Band Stereo Mastering Equalizer with bypass Switches per

Fully parametric stereo mastering equalizer with bypass switches for each band. The TM204 is available with 12 or 6 dB boost/cut range. Due to wide ranges for the q-factor and the center frequencies the stereo mastering equalizer can be used for a wide range of applications.
Price excl. of VAT and Shipping € 990.00
Inquiry and Order Form • Currency Converter

TM205 - 5-Band Stereo Mastering Equalizer with 3 fully parametric Bands

The stereo mastering version of the well-known adt-audio 5-band equalizer with optimized control ranges for mastering applications. Soft high and low eq's for global corrections are combined with three fully parametric mid bands that cover the entire audio band. The wide range of the q-factor control allows subtle corrections as well as drastic tonal surgery. Usually, the TM205 has +/-12 dB boost/cut range; however, 20 dB versions are also available.
Price excl. of VAT and Shipping € 850.00
Inquiry and Order Form • Currency Converter

TM133 - M/S Mastering Equalizer

The TM133 is a unique M/S stereo mastering equalizer that allows frequency depending stereo base width enhancement without affecting the frequency response of a mix. Integrated matrix stages make possible to use the module with standard left/right stereo input and output signals.
Price excl. of VAT and Shipping € 1340.00
Inquiry and Order Form • Currency Converter

TM134 - 4-Band M/S - EQ

The 4-band M/S EQ TM134 for frequency dependent control of the stereo base width. Each of the four band can be used either in the S channel, the M channel or in both channels with reversed characterictic. Integrated L/R - M/S and M/S - L/R matrix stages at the inputs and outputs make possible use the module with standard L/R stereo signals.
Price excl. of VAT and Shipping € 1100.00
Inquiry and Order Form • Currency Converter

TM215b Stereo Mastering Peak Limiter TM130m - MS Matrix with elliptical EQ

This stereo brickwall-limiter is extremely fast and can block peaks of 3 to 5 dB without audible side effects. There are controls for threshold, attack, and release and an additional output gain control.

A M/S matrix combined with stereo base and direction control and elliptic equalizer for effective treatment of the spacial image. The elliptic EQ maintains mono compatibility in the low frequency range. The unit can also be used as M/S to L/R or L/R to M/S converter.
Price excl. of VAT and Shipping € 625.00
Inquiry and Order Form • Currency Converter
Price excl. of VAT and Shipping € 615.00
Inquiry and Order Form • Currency Converter


PRO AUDIO :
AUDIO MODULES :
SURROUND SOUND
MIXING CONSOLES


Where to buy
Support
Download
Tell A Friend
Imprint


The ToolMod stereo mastering modules use many of the special circuitries that have been developed and optimized for the V700 mastering gear. They offer important features of this module system that has been designed especially for mastering studios.

Due to the construction principle of the ToolMod system without extensive and expensive mechanics, fancy knobs, massive, machined faceplates and stainless steal housings along with high production quantities result in the plain appearance of a normal console but make possible to offer a complete stereo mastering setup with compressor, equalizer and limiter at a price that is lower than a single module of the V700 series.
