analog Audio Processing with
ToolMod Pro Audio Gear


The ToolMod AAP analog Audio Processor in a 1U high ToolMod frame is an example for a combination of modules for analog audio processing with ToolMod pro audio gear. It combines all processing stages of a sophisticated channel strip of a high-end music production mixing console in the compact 1U high format.

The analog audio processor combines theTM116 Noise Gate, the TM112 Compressor, the TM105 5-Band Equalizer, and the TM115 Peak Limiter.
Highlights:
  • full range of Modules for analog Audio Processing
  • versatile VCA Compressor
  • Noise Gate with
    Side-Chain Filters
  • 5-Band Equalizer with 3 fully parametric Bands
  • Peak Limiter with advanced Features
  • fast Brickwall Limiter
PRO AUDIO :
AUDIO MODULES :

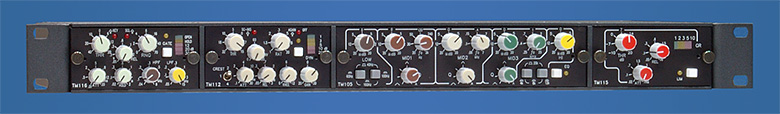

ToolMod analog Audio Prozessor ToolMod analog Audio Processing Set with Compressor, Noise-Gate, Equalizer, and Limiter
It is obvious that the ToolMod system can be used to combine any kind of modules in any desired way. The ToolMod sets are some examples of common setups for a common application. The picture shows a ToolMod Processing Set with noise gate, compressor, equalizer, and limiter

Analog Audio Processor ToolMod AAP

The ToolMod analog audio processor set combines a complete set of processing devices to a channel strip without mic pre. Such a combination covers all needs of analog signal processing for a mono track and should be at hand for at least the most important tracks. The combination of modules is almost equal to the processing section of console input modules of the music production mixing consoles 5MT Series MR. A similar set of processing devices, TM116 Noise Gate with Filters, TM112 Compressor, TM105 5-Band Equalizer, and TM115 brickwall Limiter is also part of the ToolKit Channel Strip; however, leaving out the mic pre makes the analog audio processor a lot less expensive.

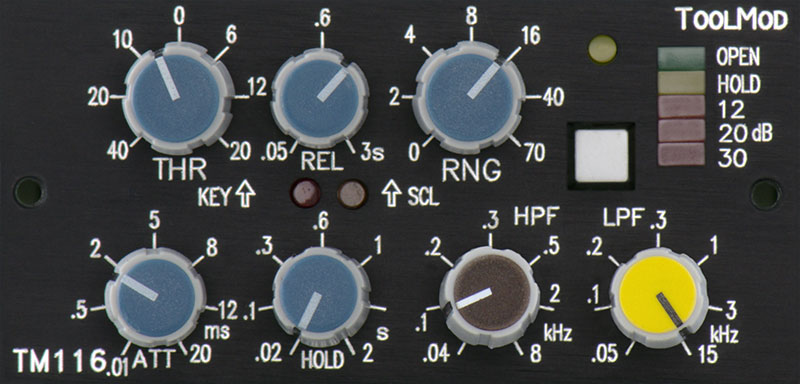

Noise GateCompressor

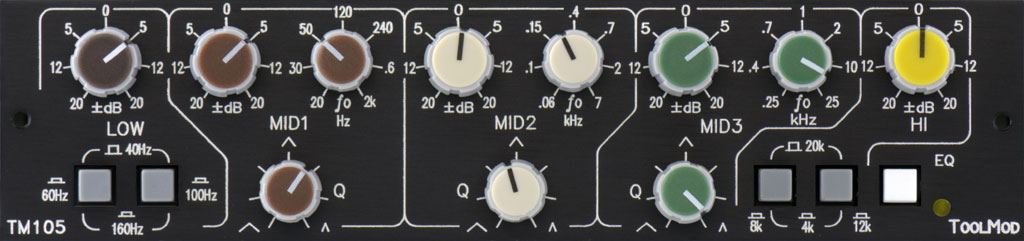

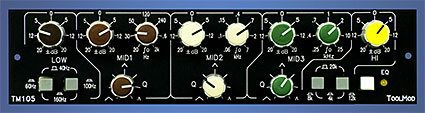

Equalizer

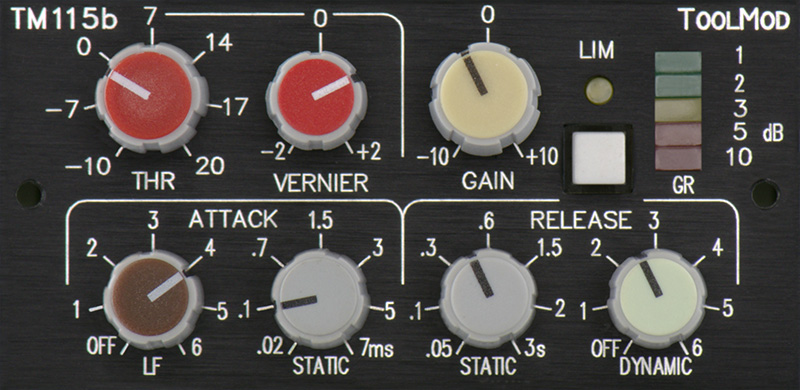

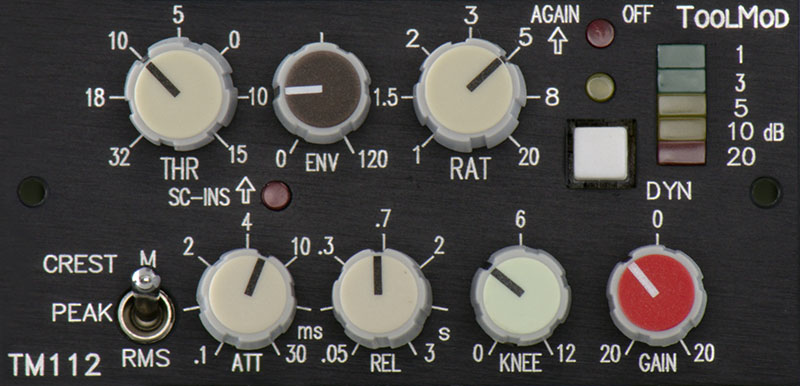

Peak LimiterVCA Compressor

The wiring of the modules on the connector panel of the frame makes it possible to connect the side chain inputs of compressor and gate in a way that the order of the units can be exchanged, just by activating the side chain or key insert, respectively. Noise-gate and compressor can be used pre or post the eq without the need of a different wiring of the audio installation.

Please check out the adt-audio web store for the full range including the latest additions to the range of ToolMod modules

Price Example:
Inquiry and Order Form
Processing Set AAP
Noise Gate TM116
Compressor TM112
Equalizer TM105
Peak Limiter TM115
1U Frame + Power Supply
Price: € 1841.00
without Power Supply and Cable the Price is reduced
by € 246.00
excl. of VAT and Shipping
Currency Converter

The ToolMod processing devices and preamps are identical to the equipment that is used in our large format mixing consoles for music production. They are based on our 30-year experience in the design of pro audio devices and mixing consoles. Continuous improvement and extensive user feedback results in well-engineered equipment that is best suited for the particular application.
