Standard Power Supply Unit ToolPwr-S

Power Supply Units for Tool Units
ToolPwr-S

The Standard Power Supply Unit

The ToolPwr-S is the standard power supply unit for the adt-audio 'Tool' series of pro audio devices. The 2U high, rack-mounted devices can deliver a peak output current of 3 A, which is sufficient for 4 to 6 ToolMod 1U high or other gear with similar current consumption.

Like all ToolPwr units, it can be used with all Tool devices.

Inquiry / Order

Power Supply Units:

ToolPwr-M for 2 to 3 Units

ToolPwr-S for 4 to 6 Units

ToolPwr-E for 8 to 12 Units

How to determine the right Power Supply for a system

Mains Voltage

Power Cables

Price List

The ToolPwr-S delivers a balanced +/- 25 V supply for the audio section and a 48 V phantom power. The load current of the audio power is 2 A, the peak output current is 3 A.

Details on the current consumption of the different Tool devices, and notes how to determine the right power supply for a particular unit or system are HERE.

The nominal power of the ToolPwr-E is 200 VA. The mains voltage can be 230 V or 115V. The voltage selector is located on the rear panel next to the Euro mains power inlet. The output voltages are available on two 5-pin xlr connectors in parallel. HERE is the pinning of the standard power connectors used with all Tool devices.

The dimensions of unit are 483 mm / 19" x 88 mm / 3.46" / 2U (faceplate width x height). The depth of the housing, without attached plugs is 210 mm / 8.25". The weight of the ToolPwr-E is 6 kg / 12.5 lbs.

- additional Information:
    How to determine the right power supply unit?
    Mains voltage and installation
    Cables
    Output pinning

This picture above shows the output connectors in detail,

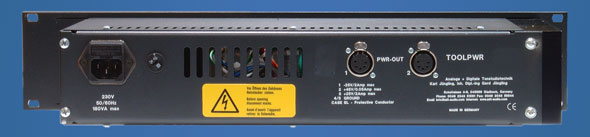

below is the rear view of the ToolPwr S

Price: € 395.00

exclusive of VAT and Shipping

The Reasons for the separate Power Supply Units

Of course, we know that external power supply units are not very popular from the users point of view. The reason why we have designed the Tool devices without integrated power supply is simple. Considering the power range of approx. 30 W for a single 1U high unit, the resulting price of the power supply section is the same as for a power supply that can be used for 2 or 3 units. In the range from 30 to 100 W the price of a power supply changes only in the range of some Euros. One of the reasons is that the necessary components to comply with the CE rules and similar regulations in other countries are identical for a power up to several 100 W. In addition, almost all electronic components are the same up to an output power in the range of 100 W. Raising the output power from 30 W to 100 W will only alter the price of the transformer, which does not matter in relation to the total price.

As far as the Tool devices are concerned this means that the external power supply unit is less expensive than included power supplies. Using one power supply for 2 or 3 units leaves the price of the power supply unit unchanged, while internal power supplies would raise the price of each unit in the range of the price of a single power supply.
