V700
Audio Modules
|

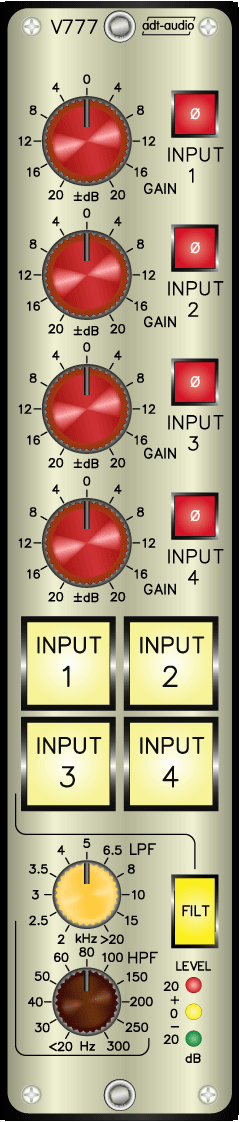

V777
Line Input Amplifier with 4 Inputs, idenpendent Gain Controls, and High-Pass Low-Pass Filter
This module has 4 separate line inputs and outputs, 4 separate gain controls, separate phase flip switches and universal high-pass and low-pass filters. It has either transformer balanced and floating or electronically balanced inputs and outputs. The entire audio chain employs symmetric circuitry, and the headroom level from input to output is +30dBu. The line inputs are balanced and floating and are equipped with an oversized ring core transformer, and the gain range is ± 20d. The high and low pass filters have a slope of 12dB/octave. The high-pass filter has a range of <20Hz to 300Hz. The low-pass filter has a range of > 20kHz to 2kHz. A peak meter indicates the output level.
The V777 is a standard V700 module and fits into standard mounting frames.
|
