VCA Fader with Automation Interface and VCA Group Select
The fader module W767 is designed for V700 console frames and custom build frames and cannot be installed in V700 standard frames.
Für Standardrahmen ist der Monoregler W766b geeignet.
The V700 pro audio module systems offers a range of fader modules for custom build consoles for different formats from mono to 5.1, with and without automation interface and/or VCA group select. The modules on this web site are a selection of the available modules that are usually manufactured according to the requirements of the customer.

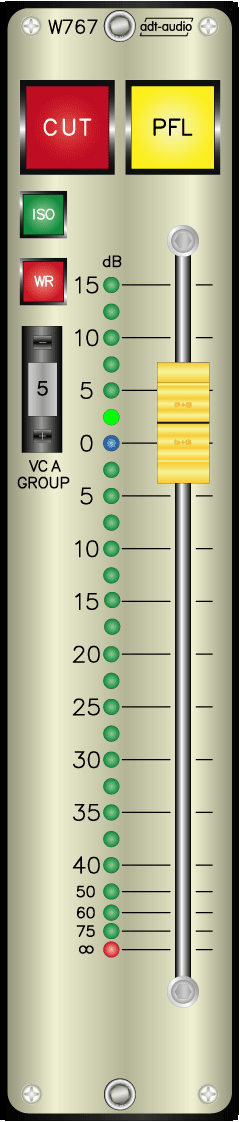

The W767 is a mono VCA fader module that includes:
All V700 fader modules use the same Penny & Giles fader with 127 mm / 5" stroke. The modules on this web site are VCA versions. Audio faders for the non automated versions are also possible, please ask. The fader modules come with a Cut switch and a PFL switch. The Cut switch is included with the automation interface of the versions that are automation ready. It can be implemented as Channel On switch alternatively. The PFL switch meets the standards for V700 consoles.
All fader modules are active and have electronically balanced inputs and outputs that can process levels of + 30 dBu. The internal audio path is entirely balanced. The maximum gain of the standard versions is 15 dB. Other versions with 10 dB, 5 dB, or 0 dB are also available. The cut-off attenuation is better than 105 dB for frequencies up to 15 kHz. The tracking accuracy of multichannel versions is better than 0.5 dB, and the scaling accuracy is better than 1 dB from + 15 dB to - 40 dB. The 0 dB position has an accuracy of +/- 0.2 dB.
The W767 VCA fader module is single slot, half-deep V700 module for console frames and custom build frame that does not fit into V700 standard frames.
