V700
Audio Modules
|

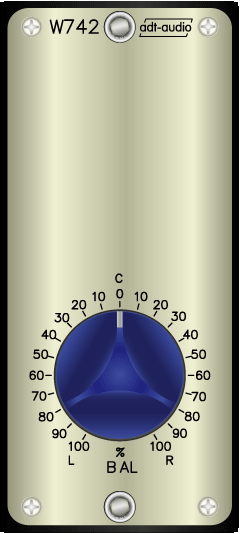

W742
Balance Contro with Stereo Input and Output and 0 dB Center Attenuation
The W742 is designed for V700 console frames and custom frames and does not fit into standard frames.
Balance Control with
- Stereo Input, and
- Stereo Output
The balance control alters the channel balance of a stereo signal with 0 dB attenuation at center.
The control is a rotary pot with 21 steps.
Inputs and outputs are electronically balanced. Additional outputs for V700 zero ohm bus rails are installed. These outputs allow direct mixing without additional gear using the bus amps and master amplifiers of the V700 system.
The W742 Balance Control is a half high, half deep V700 module for console frames and custom-build frame that does not fit into V700 standard frames.
|
