V700
Audio Modules
|
S717
Source Select Unit with 16 Stereo Inputs

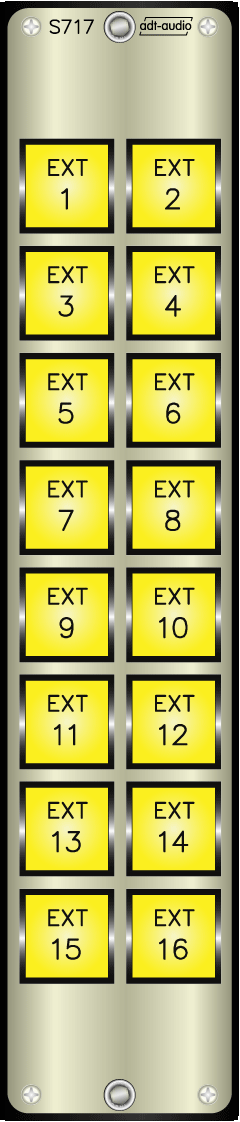

The S717 Select Unit is a relay cross rail with 16, switch selectable, stereo inputs. Each of the 16, self-locking switches controls two symmetric audio paths and an additional ground-free contact.
A break-before-make Delay prevents the coupling of connected inputs during source selection.
Several S717 select units may be daisy chained together to create a bigger system. The color and the inscription of the switch caps on the modules are based on customer's information.
The S717 select units is suitable for installation in V700 mixer frames. An installation in V700 standard frames is not intended. Mechanically the select units fit in a standard frame, however, the wiring must be adapted.
|
