Control Elements
fast Peak Limiter - ToolMod Pro Audio - TM115
Peak Limiter Home

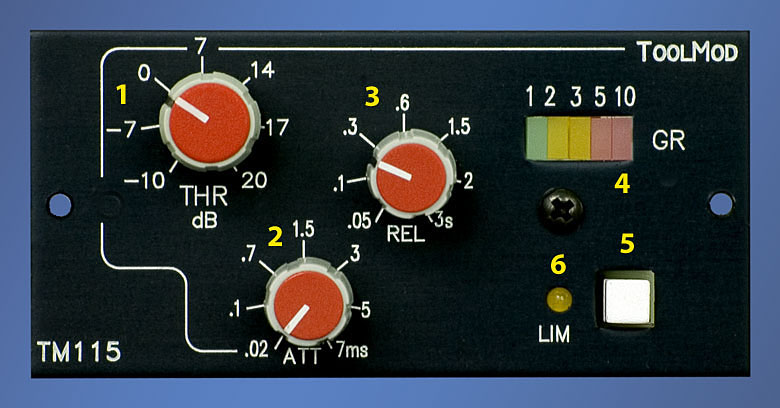

| Control Elements | Details and Specials | |
| 1 | Threshold Control Limiting occurs when the input level exceeds the threshold level Control range from +20 dB to -10 dB |
|
| 2 | Attack Control, Range from .02 ms to 30 ms for 10 dB attenuation determines the response time of the regulation |
|
| 3 | Release Control, Range from 50 ms bis 3 sec, determines the fade up speed when the level drops down | |
| 4 | The LED-Chain shows the actual gain reduction, 5 LED's, display range from 1 dB to 10 dB |
|
| 5 | Bypass Switch | |
