Allocation of Connectors
M/S Stereo Mastering Compressor TM132
M/S Stereo Mastering Compressor Home | Stereo Mastering Home

The M/S Stereo Mastering Compressor uses two module slots. From behind, the left stereo channel is on the right connector set and the right stereo channel is on the left connector set.

INPUT b/righ/St:
Side Chain Insert Input right/S
INPUT b/left/M:
Side Chain Insert Input left/M
OUTPUT a/left/M:
M/S Mastering
Output left/M

OUTPUT a/right/S:
M/S Mastering
Output right/S

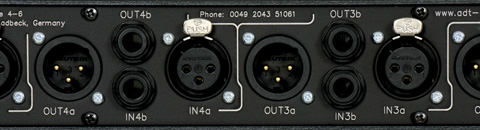

ToolMod Connectors in Frame
INPUT a/left/M:
M/S Mastering
Input left/M
INPUT a/right/S:
M/S Mastering
Input right/M
OUTPUT b/right/S:
Side Chain Insert Output right/S
OUTPUT b/left/M:
Side Chain Insert Output left/M
