analog Summing Box ToolMix8 - Connector Pinning

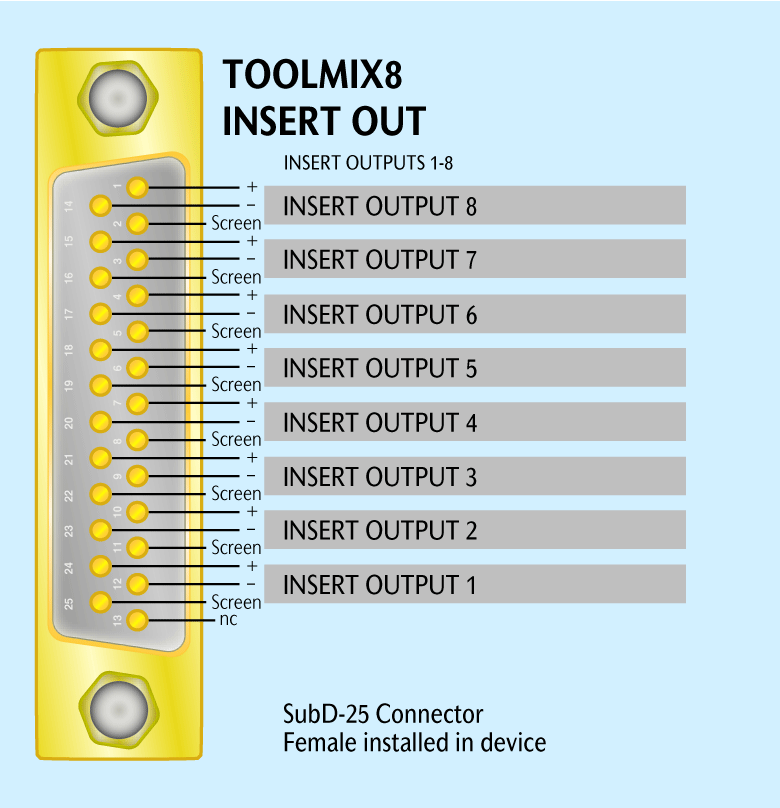

25pol. Sub-D - Insert Outputs 1 to 8
Links: analog Summing Box ToolMix8 analog Summing Gear Home

ToolMix8 Connector Pinning:
Input Insert Output Insert Input Channel Output Couple Port XLR Power Supply
