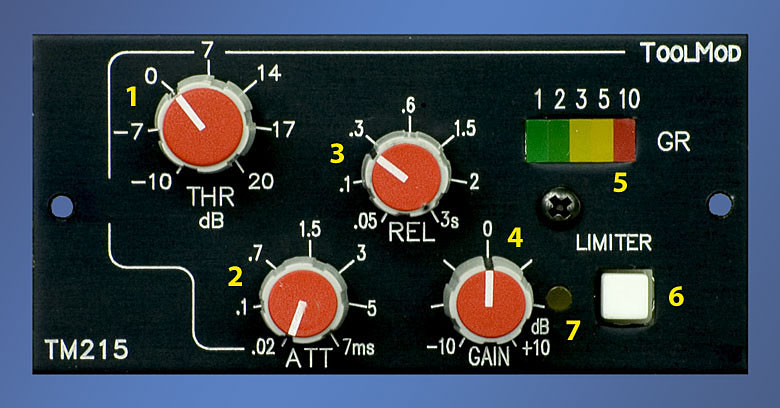

Stereo Peak Limiter

Control Elements Details and Specials
1 Threshold Control
Limiting occurs when the input level exceeds the threshold level
Control range from +20 dB to -10 dB

2 Attack Control, Range from .02 ms to 7 ms for 10 dB attenuation
determines the response time of the regulation
3 Release Control, Range from 50 ms bis 3 sec, determines the fade up speed when the level drops down
4 Gain Control with calibrated center position and center detent,
control range +/- 10 dB
The gain control affects the output level post limiter
5 The LED-Chain shows the actual gain reduction,
5 LED's, display range from 1 dB to 10 dB
6 Bypass Switch
