Surround Console SCR51 detailed Infos here

V700 Surround Monitoring and Control Room Devices

The V700 Audio Module System offers Control Room Regulator Units and Source Selectors for 4 Channel Surround Sound and 5.1 Format as well. The 4 channel versions have all necessary installations for the integration of external Encoder Decoder Systems. The 5.1 Format Regulator W762 has an integrated Stereo Downmix Matrix and a 4 Channel Matrix. All the modules are electronically balanced and can be used with external transformer modules.

W761
Control Room Regulator Unit for
4 Channel Surround
4 channel Control Room Unit
A complete Control Room Regulator section for use with 4 channel Surround Sound. In addition to an internal stereo and mono matrx, there is all necessary installation to integrator external surround decoder systems
W762
Control Room Regulator for 5.1 Surround Sound Format
5.1 Control Room Unit
The W762 is a Control Section for use with 5.1 Surround Sound. It includes a Stereo/Mono Downmix Matrix, independent cut switches for the single channels and a 4 channel matrix.
S717
Source Select Module with inputs for 16 stereo sources
Stereo Source Selector
This Source Selector has 8 Stereo Inputs and
4 6 Channels Inputs

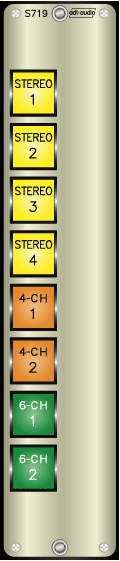

S719
Combined Source Select Module for Stereo,
4-Channel and 5.1
Multiformat Source Selector
The S719 is a Source Select Unit, that combines 4 Stereo sources, 2 4 Channels and 2 6 Channels Sources.
