The Surround Limiter

The limiter can be set for extremely fast operation. It's look-ahead electric rectifier steps were optimized for the fastest reaction times, and all adjustable parameters have a wide range of settings which make it quiet easy to adapt the attitude of the limiter for different types of program material. The threshhold offset for the surround channels is ± 20dB. The automatic controller CPLE determines the link between the front and the surround channels as with the compressor. The LFE SAVE switch removes the LFE channel from the processing chain. With LFE LIM a separate limiter for the LFE channel is activated.

The complete automatic control loops of the limiters process the output signal of the compressor, therefore, changes in the adjusted parameters of the limiters by variations in the compressor is impossible. Each processing section is equipped with dual gain reduction meters that display gain reduction for LCR and surround channels separately. Additionally, there are six master gain reduction meters that indicate the gain reduction for the separate channels. Inputs and Outputs The inputs and outputs of the device are either electronically balanced or balanced and floating with high-quality, oversized transformers.Inputs and outputs are on XLR and D-Sub connectors. The DSub connetor facilitates the easy connection of the unit to the surround controller, DIRECTOR.

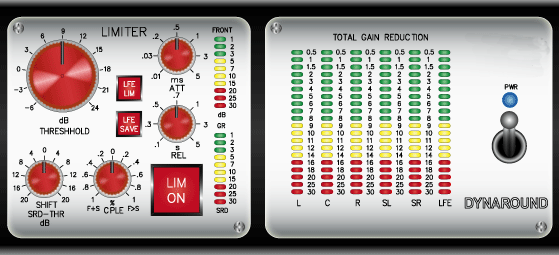

Dynaround Surround Limiter and Meter Section FEATURES:
Attack: 0.01µs to 5ms
Release: 0.1 to 5 seconds
Threshold: -6dBu to 24dBu;
Threshold offset for the
surround channels: ± 20dB
Coupling multi-channel
regulation amplifier;
Separate LFE limiter;
Two separate activity meters with 10 light-emitting diodes that show the current gain change for LCR and Surround signals.
