Pro Audio Module System ToolMod
Channel Strip Modules and Processing Gear

Mic Pre, Equalizer, Compressor, Noise Gate, Peak-Limiter and DI-Amp of the ToolMod Pro Audio Systems let you combine any channel strip or processing set. All modules are based on the proven components and the circuitry of hundreds of large format mixing consoles.

Here is an overview on all ToolMod modules for these applications. The pictures show the horizontal versions for 1U high frames.All modules are also available with vertical faceplates for 2U high and 4U high frames.

The ToolMod Stereo Mastering modules are here

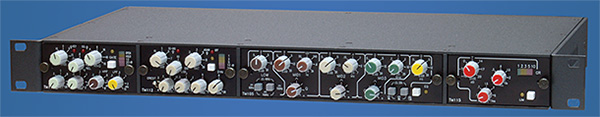

ToolMod Channel Strip with Mic-Pre, EQ, Compressor, and Noise-Gate
ToolMod Channel Strip with Mic-Pre TM101, 5-Band-EQ TM105, Compressor TM112, and Noise-Gate TM116
TM101 - Transformer Mic Pre TM112b - versatile VCA Compressor

The classical adt-audio mic pre with Haufe input transformer, used in thousands of console channels of the 5MT series consoles in ToolMod format. The unique balance of warmth and transparency, together with outstanding noise performance, also at low gain settings, and the huge headroom make the TM101 best suited for every application.

A versatile vca compressor with integrated parallel compression and auto-release. Crest modifies the rectifier characteristics from peak to medium and RMS; envelope control for low distortion bass compression and soft knee combined with the extra wide attack range for natural sounding settings with huge loudness gain. A side chain insert and a precise autogain function complete this top class compressor.
Price excl. of VAT and Shipping € 465.00
Inquiry and Order Form • Currency Converter
Price excl. of VAT and Shipping € 425.00
Inquiry and Order Form • Currency Converter

TM102 - discrete Mic Pre TM107 - versatile 3 Band Equalizer

The discrete, transformer less version of the adt-audio mic pre with transistorized input stage offers the same outstanding noise performance as the TM101. The major difference is the very high input impedance that is possible with the transformer less design. Two switches allow adding resistive and capacitive loads in parallel to the microphone. Like the TM101, the TM102 has a line input with separate gain control, high-pass and low-pass filters and a level indicator.

The ToolMod 3-Band EQ covers a huge range of highly qualified sound processing. The low band with a frequency range down to 15 Hz allows effective manipulation of the bass range and the high shelving filter with an edge frequency of 40 kHz can produce silky sound and high frequency pressure as well. The steepness control can modify the characteristics of the high eq in a unique way. The TM107 is completed by a wide range, fully parametric mid band, based on adt-audio's classic 'Vienna Bridge' circuitry.
Price excl. of VAT and Shipping € 415.00
Inquiry and Order Form • Currency Converter
Price excl. of VAT and Shipping € 335.00
Inquiry and Order Form • Currency Converter

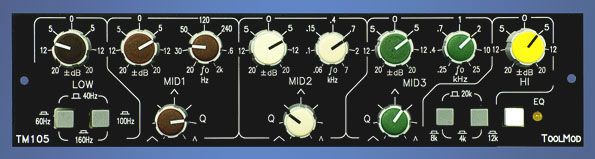

TM105 - 5 Band Equalizer (Version of the 5MT Mixing Consoles)

The well-known adt-audio 5-Band equalizer that is used with the large format music production consoles 5MT Series MR and Series D ever since. 3 'Vienna Bridge' based mid bands cover the entire audio band from 20 Hz to 25 kHz with huge overlapping frequency ranges. The additional, soft, RC-based high shelving filter and the soft bell low band with four selectable frequencies make global corrections fast and easy. The TM105 is available with +/- 20 dB or +/- 12 dB boost/cut range.
Price excl. of VAT and Shipping € 415.00
Inquiry and Order Form • Currency Converter

TM103 - active DI Amp with Filters TM116 - Noise Gate with Side-Chain Filters

An active DI amp for guitars and other instruments with high impedance pickups. The amplifier is optimized for this application. In addition to the multimode input circuit with balanced or unbalanced input, ground-lift and phase reversal, there is a high-pass and low-pass filter, an input pad and a level indicator.

A Noise-Gate with a full set of controls for all parameters for effective envelope processing with build in, wide range high-pass and low-pass filters, key input and key listen function. Ultra fast attack time and the click free operation make possible to use the TM116 with critical signals without problems.
Price excl. of VAT and Shipping € 335.00
Inquiry and Order Form • Currency Converter
Price excl. of VAT and Shipping € 330.00
Inquiry and Order Form • Currency Converter

TM115b - very fast Peak Limiter TM130 - MS Matrix with elliptical EQ

The mono version of the Stereo Mastering Peak Limiter TM215b. The TM115b comes with additional features for improved handling of the physical limits of analog limiting.

M/S matrix with stereo base and direction control combined with an elliptical EQ. The input can be switched to M/S mode. The M/S matrix is best suited for stereo mastering, M/S processing and recording with stereo microphones in M/S mode.
Price excl. of VAT and Shipping € 495.00
Inquiry and Order Form • Currency Converter
Price excl. of VAT and Shipping € 610.00
Inquiry and Order Form • Currency Converter

TM115 - Brickwall Limiter TM112 - Compressor with Crest + Envelope

Mono brickwall-limiter with threshold, attack and release controls. The TM115 is optimized for inaudible regulation of short peaks in the range of several db.

A versatile compressor with many additional features. Crest modifies the rectifier characteristics from peak to medium and RMS; envelope control for low distortion bass compression and soft knee combined with the extra wide attack range for natural sounding settings with huge loudness gain. A side chain insert and a precise autogain function complete this top class compressor.
Price excl. of VAT and Shipping € 395.00
Inquiry and Order Form • Currency Converter
Price excl. of VAT and Shipping € 360.00
Inquiry and Order Form • Currency Converter
