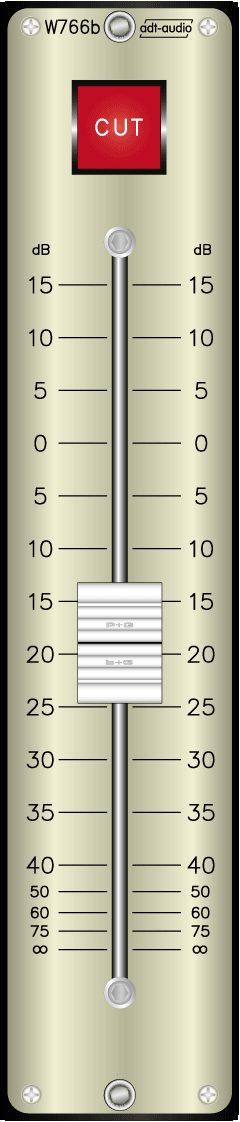

W766b
Mono Fader Module with Cut Switch for V700 Standard Frames
The W766b is a mono fader module with 127 mm/5" Penny 6 Giles fader and Cut Switch for universal use. The mono fader module fits into V700 standard frames.
The mono fader module is used for level settings of single channels.
The cut switch can be implemented as Channel On switch alternatively.
The mono fader module is active. Inputs and outputs are balanced. Electronically balanced and transformer balanced versions are available. The maximum gain of the standard version is 15 dB; other versions are also available. The headroom of the fader module is + 30 dBu. The infinity cut off is better than 105 dB at any frequency below 15 kHz. The scale accuracy is better than 1 dB in the range from + 15 dB to - 40 dB.
The W766b Mono Fader Modules is a single slot V700 standard module that can be used in all V700 standard frames.
Versions: |
Maximum Gain 12 dB, 10 dB, 6 dB, 5 dB or 0 dB with corresponding scale |
Custom Colors of Faceplate, Fader Knob and Switch Cap |
Alternativen: |
W768b - Stereo Regler |
|
