V700
Audio Modules

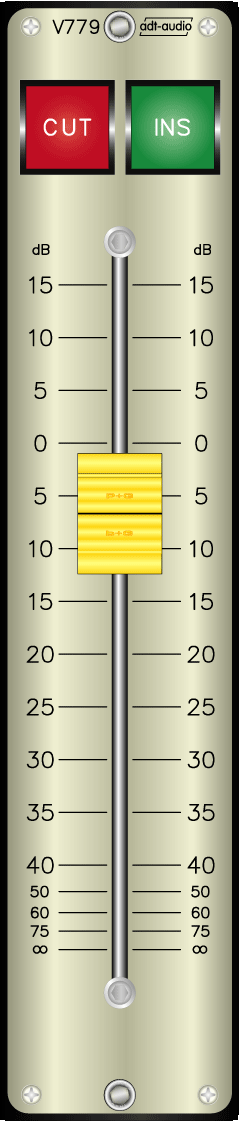

V779
Subgroup Master Amplifier

A subgroup amplifier with fader, cut and a balanced insert point for use in customized V700 mixing consoles.

The output of the subgroup amplifier is balanced and floating. The internal and external headroom is + 30 dBu. The input is designed for balanced bus rails of the V700 system. The insert is electronically balanced. Balanced , floating versions of the insert point can be implemented by external transformers. The entire signal path of the Subgroup amplifier is implemented in dual balanced technologie and has a headroom of + 30 dBu.

The V779 is used as a master amplifier for any master rail. There is a fader with +15 dB gain range and an additional cut function that can be used as a master fader. The insert point is fixed pre fader. The insert output is always active. The insert input is switched into the signal path by pressing the INS switch. The unit is favoured fas a master amplifier for groups and submasters.

The V779subgroup amplifier is used for mixer frames of the V700 console system.

Test Review Inquiry
Price: ask
Specifications
Module for Console Frames
not suited for Standard Frames
open V700 Navigation Page

Custom Control Ranges
Custom Color of Fascia and Knobs
