V700
Audio Modules
|
V774
3-Level Distribution Amplifier with Gain Control
The V774 is used as distribution amplifier with or without conversion of the nominal level. The input signal is available in parallel on three separate outputs with the nominal studio levels + 6 dBu, + 9 dBu, and with long distance line level of + 15 dBu. The gain control on the faceplates allows adjusting the overall gain in the +/- 10 dB.
The input and the outputs of the module are transformer balanced. The special output transformer has three separate windings for the 3 output levels. The entire unit can handle levels up more than + 30 dBu. The double balanced designed allow an internal headroom of + 30 dBu, maintaining a dynamic range of 130 dBRMS at 0 dB gain.
The module has one input and three floating outputs.

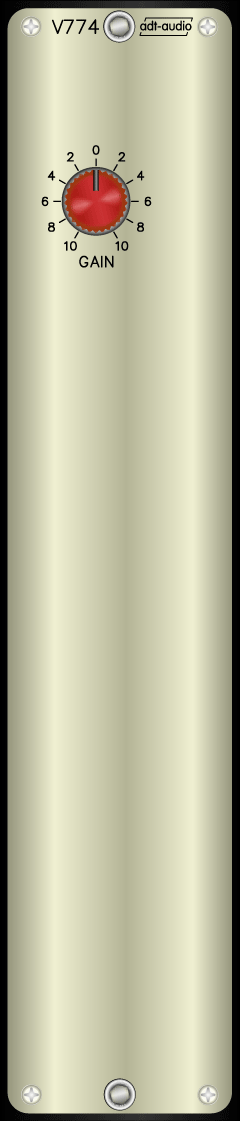

The V774 3-level distribution amplifier is a 1 slot V700 module that is suited for V700 standard frames.
|
